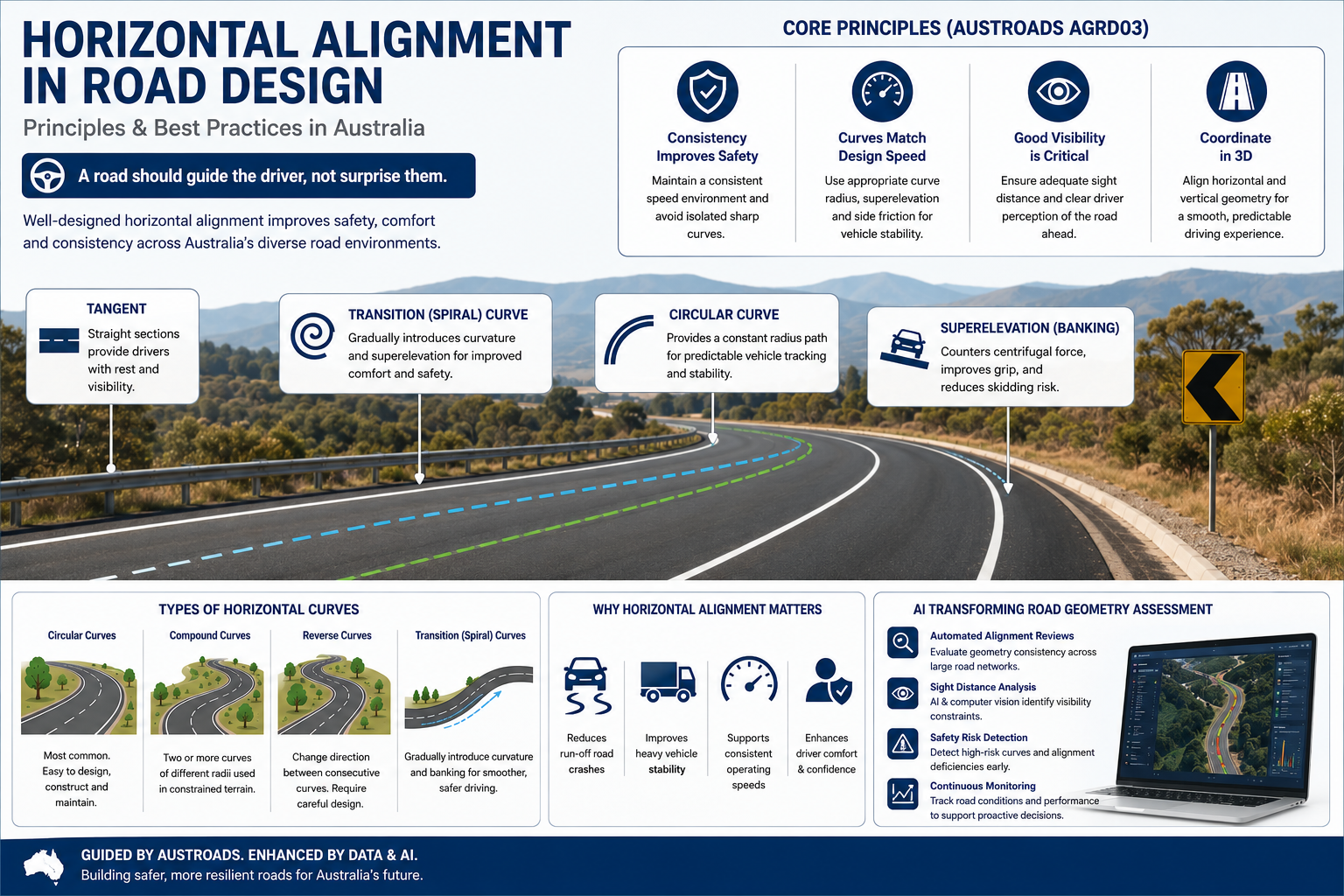

Horizontal Alignment in Road Design: Principles and Best Practices in Australia

‍

Designing safe and efficient roads requires a meticulous understanding of geometric principles, especially horizontal alignment. In Australia, the horizontal alignment of a road is not merely a matter of drawing curves and tangents—it’s a science rooted in vehicle dynamics, driver perception, safety, and terrain adaptability. This blog explores the fundamental principles and best practices followed in Australia for horizontal alignment, based on the authoritative Austroads Guide to Road Design Part 3: Geometric Design.

‍

‍

What is Horizontal Alignment in Road Design?

‍

Horizontal alignment refers to the path of a road in the horizontal plane. It comprises straight sections (tangents) and curves (circular, spiral, or transition curves). This alignment determines how a road navigates through the landscape, influencing driver comfort, speed control, sight distance, and overall safety.

‍

Why Horizontal Alignment is Crucial in Australia

‍

Australia’s diverse topography—from flat plains to mountainous regions—demands alignment strategies that are adaptable, safe, and context-sensitive. Roads are designed to accommodate expected vehicle speeds while ensuring that horizontal curvature does not introduce surprise elements, particularly in high-speed or rural environments.

‍

Core Principles of Horizontal Alignment Design

‍

1. Consistency and Safety

‍

• The alignment should be as consistent as possible to prevent abrupt changes in curvature and speed.

• Inconsistent curve radii may lead to "out-of-context" curves, increasing the likelihood of crashes, especially run-off-road and head-on accidents.

• A curve that reduces vehicle speed by over 30 km/h from an approach speed of 100 km/h increases the crash risk by 5.1 times.

‍

2. Speed Environment Matching

‍

• Design speeds should align with operating speeds and road classification.

• Curve radii must correspond to the expected speed range for a section of road, maintaining uniform speed environments to avoid sudden decelerations.

‍

Types of Horizontal Curves and Their Use

‍

1. Circular Curves

‍

Circular curves are the most common and are defined by radius, superelevation, and friction factors.

‍

Key Formula:
R=V2127(e+f)R = \frac{V^2}{127(e + f)}R=127(e+f)V2​
Where:

‍

• R = radius (m)
• V = speed (km/h)
• e = superelevation
• f = side friction factor

‍

2. Compound Curves

‍

• Consist of two curves with different radii turning in the same direction.

• Generally discouraged as they confuse drivers due to changing friction demands.

• Guidelines:
  • Avoid radii < 1000 m.
  • Design speeds between the curves should be within 5 km/h.
  • Use only when terrain constraints exist.

‍

3. Broken Back Curves

‍

• Two curves of the same direction, separated by a short tangent.

• Should be avoided unless dictated by steep terrain.

• They lead to poor lane discipline, inconsistent superelevation, and unpleasant aesthetics.

‍

4. Reverse Curves

‍

• Curves turning in opposite directions.

• Should be separated by a tangent, especially for high-speed environments.

• Without adequate separation, reverse curves reduce driver comfort and increase crash risk.

‍

Transition Curves (Spirals)

‍

Transition curves gradually change curvature between straight and curved sections. They:

‍

• Improve driver comfort and control.

• Reduce side friction demand suddenly placed on vehicles.

• Are essential on high-speed or multi-lane roads.

‍

Horizontal Alignment Design Procedure in Australia

‍

Austroads outlines a six-step process for designing horizontal alignment:

‍

• Identify Controls: Topographical, environmental, and structural constraints.

• Determine Operating Speed: Based on terrain and road class.

• Trial Alignment: Combine curves and tangents.

• Design Gradeline: Coordinate horizontal and vertical alignment.

• Speed Compatibility Check: Ensure alignment matches design speed.

• Final Adjustments: Minimise earthworks, meet sight distance and crossfall criteria.

‍

Superelevation Considerations

‍

Superelevation is the banking of the roadway at curves to counteract centrifugal force.

‍

• Must remain within design limits (typically ≤6%).

• On downgrades, increase the minimum curve radius by 10% for each 1% grade over 3%.

• Should be introduced gradually over a suitable transition length to avoid drainage issues and abrupt crossfall changes.

‍

Coordination of Horizontal and Vertical Alignment

‍

Effective road design in Australia emphasizes the coordination of horizontal and vertical geometry:

‍

• Vertical curves (crests/sags) should complement horizontal ones.

• Avoid placing sharp horizontal curves at the top of vertical crests, as it reduces night visibility and can disorient drivers.

• Aim for coincidence of curves for better aesthetics and safety.

‍

Sight Distance and Driver Perception

‍

• Adequate sight distance is critical on curves for safe overtaking and reaction time.

• Horizontal Curve Perception Sight Distance allows drivers to detect the curvature early and adjust speed.

• In Australia, curve perception distance may exceed stopping sight distance to ensure safety in low-visibility areas such as tree-lined roads or bridges.

‍

Best Practices in Australia

‍

• Minimise changes in speed between consecutive curves.

• Avoid isolated sharp curves after long tangents.

• Use curve warning signs and chevrons if design constraints force speed reductions >10 km/h.

• On major roads, maintain uniform speed standards across all curves.

• Apply spirals only when curve radius warrants it.

• Ensure drainage, aesthetics, and constructability are not compromised.

‍

Conclusion

‍

Horizontal alignment is one of the most significant factors in road safety and driver comfort. Australia's approach, as prescribed by Austroads, combines rigorous design principles with adaptable best practices tailored for varied terrains and road types. Whether it's selecting appropriate curve radii, integrating transition curves, or coordinating vertical profiles, every detail matters in delivering safe, efficient, and visually pleasing roadways.

‍

RoadVision AI is transforming infrastructure development and maintenance by harnessing AI in roads to enhance safety and streamline road management. Using advanced roads AI technology, the platform enables early detection of potholes, cracks, and surface defects through precise pavement surveys, ensuring timely maintenance and optimal road conditions. Committed to building smarter, safer, and more sustainable roads, RoadVision AI aligns with IRC Codes, empowering engineers and stakeholders with data-driven insights that cut costs, reduce risks, and enhance the overall transportation experience.

‍

FAQs

‍

Q1. What is horizontal alignment in road design and why is it crucial?
Horizontal alignment principles refer to the layout of road paths in a horizontal plane - curves, tangents, and transitions—that directly affect visibility, safety, and user comfort.

Q2. How does horizontal alignment impact vehicle safety and comfort?
Poor road geometry and vehicle flow coordination can result in sharp turns, sudden braking, and driver discomfort, increasing the risk of crashes, especially in hilly or urban areas.

Q3. What are some best practices in horizontal alignment for Australian roads?
Australian road design guidelines recommend consistent curvature, clear sight distances, and adherence to AGRD03-16 for ensuring safe and predictable vehicle behavior.

‍
