IRC Code-83-2015 (Part-I): Shaking Up Safety - Special Requirements for Bridge Bearings in Seismic Zones

‍

Bridges in seismic zones face unique challenges due to the forces generated by earthquakes. The design and selection of bridge bearings in these regions require special considerations to ensure that structures can withstand seismic events and maintain their integrity. This blog explores the critical aspects of seismic considerations, design adjustments, and testing protocols for bridge bearings in earthquake-prone areas, ensuring that safety and functionality are prioritized.

‍

‍

Seismic Considerations: How Bearings Respond to Earthquakes

‍

Seismic Forces and Movements:

‍

• During an earthquake, bridges experience significant lateral and vertical forces. These seismic forces can cause displacements, rotations, and vibrations, which bearings must accommodate without failing.

• Bearings play a crucial role in dissipating energy and allowing controlled movements to prevent damage to the bridge's superstructure and substructure.

‍

Energy Dissipation:

• Bearings in seismic zones are often designed to absorb and dissipate seismic energy. This energy dissipation helps reduce the forces transmitted to the bridge structure, minimizing potential damage.

• Devices like elastomeric bearings with high damping capacity or specialized seismic isolators are used to manage and reduce seismic energy impact.

‍

‍Isolation and Movement Accommodation:

‍

• Seismic isolation bearings are designed to decouple the bridge superstructure from the ground motion, allowing for controlled movement. This isolation helps reduce the acceleration forces acting on the structure.

• Bearings must also accommodate large displacements without losing stability or functionality, ensuring the bridge can move freely and safely during an earthquake.

‍

Design Adjustments: Special Design Features for Seismic Resilience

‍

Increased Damping Capacity:

‍

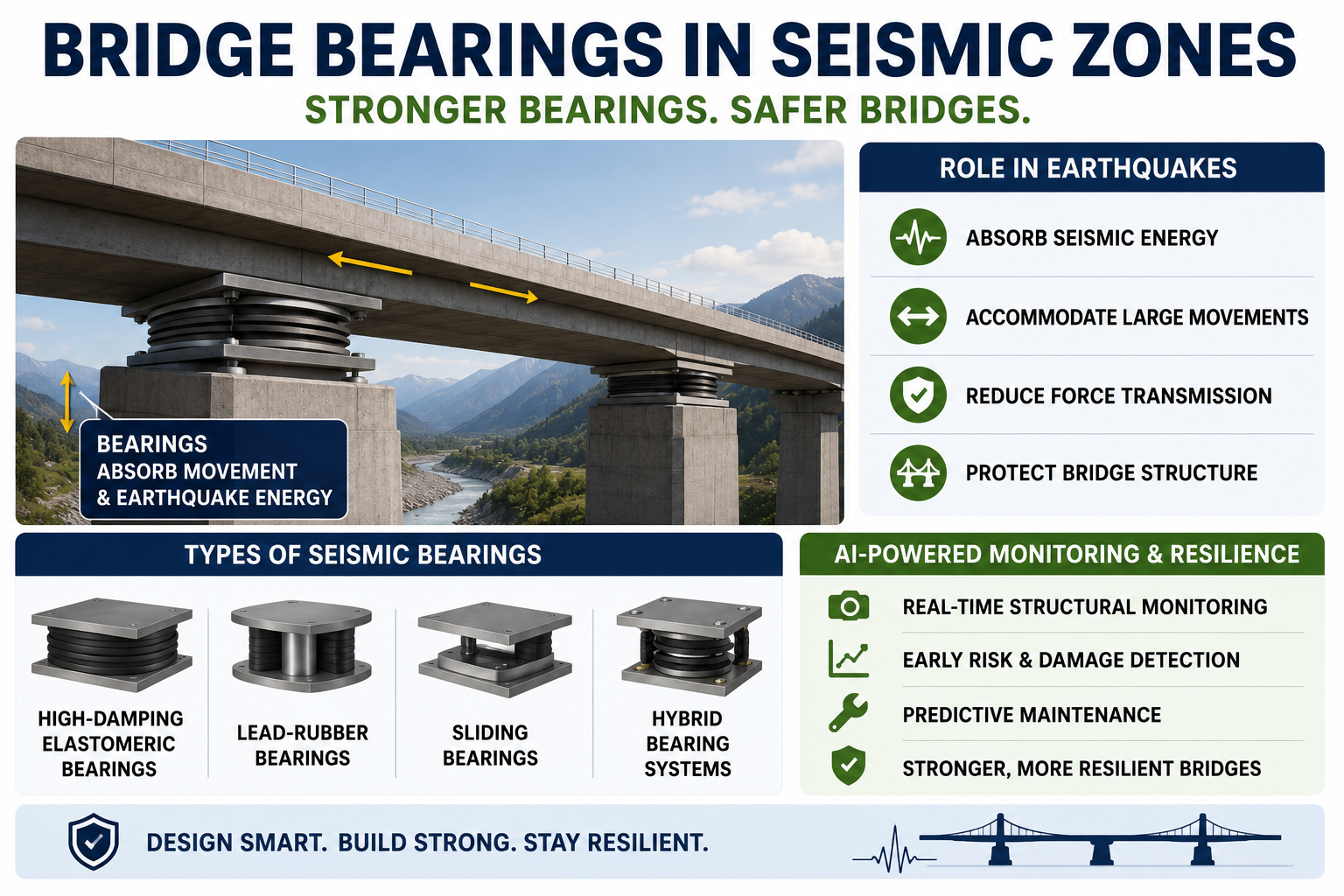

1. Bearings with enhanced damping properties are crucial for seismic zones. High-damping rubber bearings or lead-rubber bearings are commonly used, as they can absorb significant amounts of energy, reducing the forces transmitted to the structure.

‍

2. The inclusion of damping elements in the bearing design helps to dissipate seismic energy and control the movement of the bridge.

‍

3. Seismic Isolation Bearings:

‍

• Elastomeric Isolation Bearings: These bearings use layers of elastomer and steel to provide flexibility and damping. They allow horizontal movement and rotation, reducing the impact of seismic forces.

• Sliding Bearings: Incorporating low-friction sliding surfaces, these bearings facilitate horizontal movements, isolating the bridge from ground motions.

• Hybrid Bearings: Combining features of different types of bearings, hybrid designs can offer both damping and isolation, providing enhanced seismic performance.

‍

Flexible Connections and Anchorage:

‍

1. Bearings in seismic zones are often designed with flexible connections to accommodate large movements without becoming detached. Special anchorages and restraints are used to secure the bearings and prevent them from displacing during an earthquake.

‍

2. These connections must be strong enough to hold the bearings in place while allowing the necessary freedom of movement.

‍

3. Increased Load Capacity and Redundancy:

‍

• Bearings are designed with increased load capacities to handle the additional forces generated during seismic events. This includes considering both vertical and horizontal loads.

• Redundant bearing systems may be employed to ensure that if one bearing fails, others can still provide support, enhancing the overall resilience of the bridge.

‍

Testing for Seismic Performance: Ensuring Safety in Seismic Zones

‍

Seismic Qualification Testing:

‍

• Bearings intended for use in seismic zones undergo rigorous seismic qualification testing. These tests simulate earthquake conditions to evaluate the bearing's performance under expected seismic loads and displacements.

‍

• The tests include cyclic loading, which subjects the bearings to repeated movements to assess their durability and energy dissipation capabilities.

‍

Full-Scale Shake Table Tests:

‍

• Full-scale shake table tests are used to replicate real-world seismic events. Bearings are installed on test structures and subjected to simulated ground motions to observe their behavior and performance.

‍

• These tests provide valuable data on the bearing's ability to accommodate seismic movements, maintain stability, and protect the structure.

‍

Performance Evaluation and Certification:

‍

• After testing, bearings are evaluated based on their performance metrics, including displacement capacity, damping characteristics, and energy dissipation.

‍

• Bearings that meet or exceed the required standards are certified for use in seismic applications. This certification ensures that the bearings can provide the necessary protection during an earthquake.

‍

Conclusion

‍

Designing bridge bearings for seismic zones involves a specialized approach that prioritizes energy dissipation, movement accommodation, and structural isolation. By incorporating advanced materials and technologies, such as high-damping rubber, sliding surfaces, and seismic isolators, engineers can significantly enhance the resilience of bridges in earthquake-prone areas. Rigorous testing ensures that these bearings can withstand the dynamic forces of seismic events, providing a crucial line of defense for bridge structures. Through thoughtful design adjustments and comprehensive testing, we can safeguard our infrastructure and enhance the safety and reliability of bridges in seismic zones.

‍
