IRC Code: SP:64-2005 – Comprehensive Guidelines for Analysis and Design of Cast-in-Place Voided Slab Superstructure

‍

The Indian Roads Congress (IRC) released IRC:SP:64-2005 to address the structural analysis and design of cast-in-place voided slab superstructures. These slabs, known for their reduced weight without compromising structural integrity, are essential for constructing durable and cost-effective bridge superstructures. This document provides a standardized approach for design engineers and structural consultants.

‍

‍

Scope of IRC:SP:64-2005

‍

The guidelines cover critical aspects such as:

• Analysis techniques for voided slab superstructures
• Structural detailing of components
• Design requirements for longitudinal and transverse actions
• Recommendations for reinforcement placement

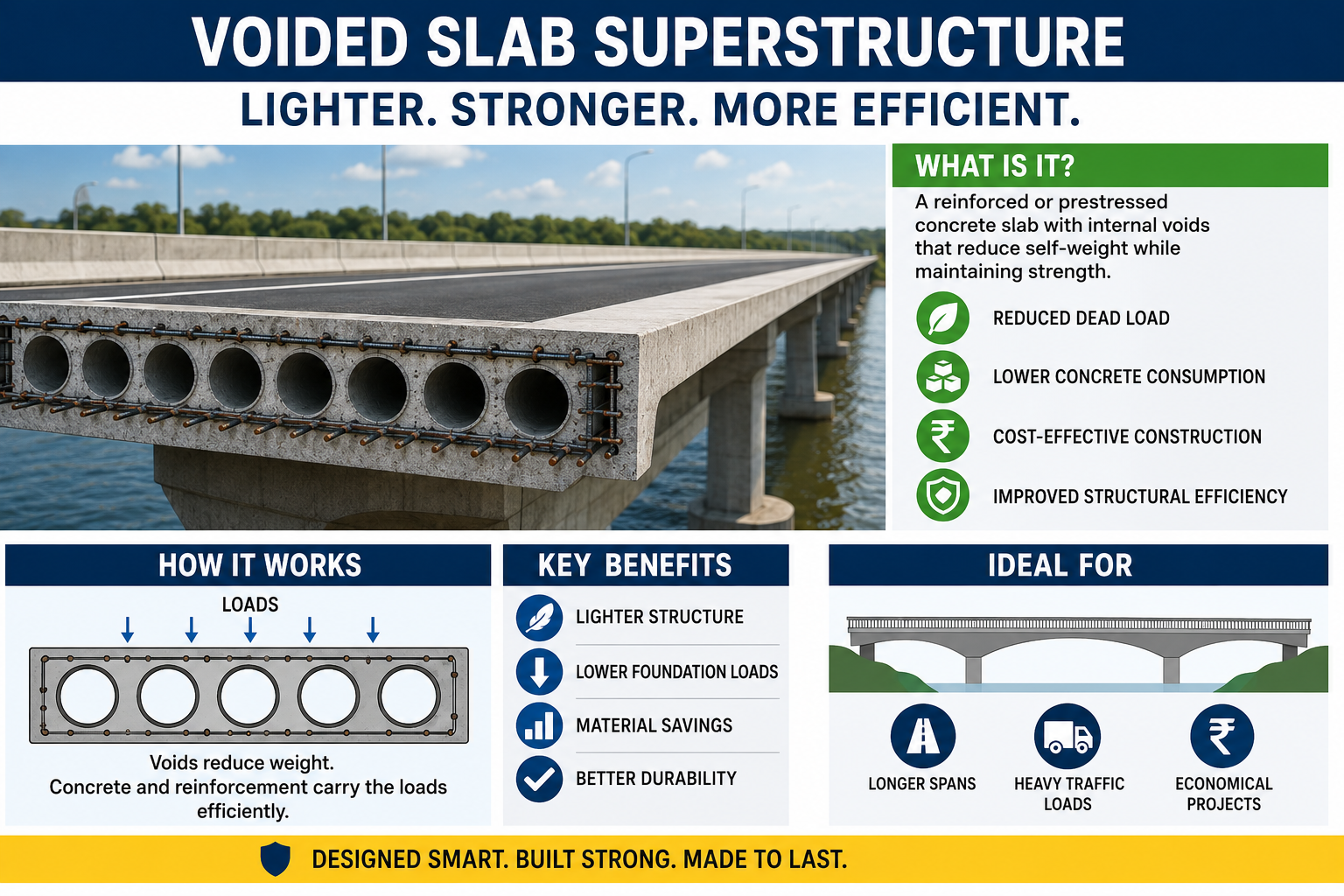

The voided slab superstructure design is essential for minimizing material usage while maintaining high load-bearing capacity, making it suitable for bridge projects and other heavy-load structures.

‍

Key Design Parameters

‍

1. Cross-Section Dimensions

• Voids can be circular or rectangular.
• The diameter of circular voids should not exceed 75% of the slab depth to avoid distortional effects.
• Minimum thickness requirements for reinforced and prestressed slabs ensure structural stability.

2. Structural Analysis Methods

• Solid Slab Analysis: Suitable when the void ratio is below 40%.
• Orthotropic Plate Method: Ideal for right and skew bridges with skew angles up to 20°.
• Grillage Analogy: Used for both straight and curved bridges.
• Three-Dimensional Continuum Analysis: Applicable for complex structural designs.

Material Recommendations

Void formers should be durable, rigid, and waterproof. Common materials include:

• Steel sheets
• Expanded polystyrene
• Fiber-reinforced cement

Reinforcement Guidelines

• Longitudinal Reinforcement: Provided based on bending moments and shear forces.
• Transverse Reinforcement: Split into two layers near the crown of the void and the outer surface to ensure structural integrity.

‍

Advantages of Voided Slab Superstructures

‍

1. Material Efficiency: Reduced concrete usage while maintaining strength.
2. Cost-Effective: Lower material costs and transportation savings.
3. Enhanced Durability: Better performance under dynamic loads.
4. Lightweight Design: Reduced dead load on foundations.

‍

Conclusion

‍

The IRC:SP:64-2005 guidelines offer a structured framework for the analysis and design of cast-in-place voided slab superstructures. By adhering to these guidelines, engineers can achieve efficient, cost-effective, and structurally sound designs for modern infrastructure projects.

‍
