Key Components of Roller and Rocker Bearings As Per IRC:83-2015 (Part-I)

‍

Roller and rocker bearings are essential components in bridge construction, providing support and facilitating controlled movement between the superstructure and substructure. These bearings help accommodate the movements and forces experienced by the bridge due to thermal expansion, traffic loads, and other environmental factors. Understanding the key components of these bearings is crucial for their design, installation, and maintenance. This blog will delve into the main parts of roller and rocker bearings and their supporting structures.

‍

‍

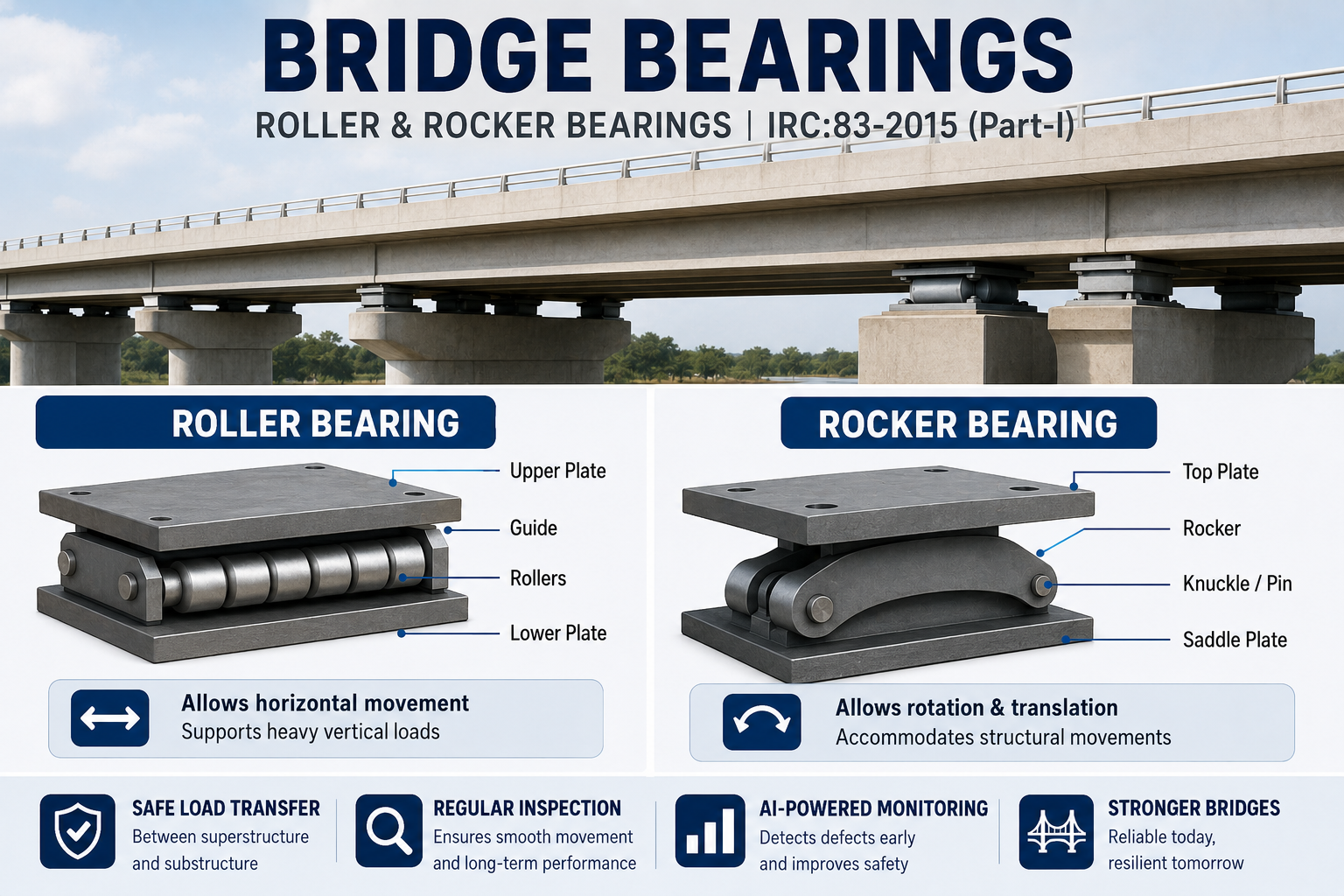

Main Parts of Roller Bearings

‍

Rollers:

‍
Rollers are cylindrical components that allow for smooth linear movement by rolling between two surfaces. They are typically made of high-strength steel or other durable materials to withstand heavy loads and reduce friction. The rollers' size and number depend on the bearing's load-carrying capacity and the required range of movement.

‍

Plates:

‍
Roller bearings include two main plates: the upper (superstructure) plate and the lower (substructure) plate. The upper plate is attached to the bridge deck, while the lower plate is fixed to the bridge pier or abutment. These plates are usually made of steel and have precisely machined surfaces to ensure smooth interaction with the rollers.

‍

Guides:

‍
Guides are essential for maintaining the alignment of the rollers and ensuring they move in the intended direction. They prevent lateral displacement and help distribute the load evenly across all rollers. Guides are typically incorporated into the design of the bearing housing or the plates.

‍

Main Parts of Rocker Bearings

‍

Rockers:

‍
Rockers are curved components that provide a rocking motion, allowing for both translational and rotational movements. They can be simple curved plates or more complex assemblies with a pin or knuckle mechanism. The curvature of the rockers is designed to accommodate specific rotational angles and movements.

‍

Knuckles:

‍
Knuckles, also known as pins, are used in some rocker bearings to serve as a pivot point. They enhance the bearing's ability to accommodate rotational movements by providing a defined axis of rotation. Knuckles are typically made of high-strength materials and are crucial for ensuring the stability and proper function of the bearing.

‍

Saddle Plates:

‍
Saddle plates are the curved surfaces on which the rockers rest. They are part of the bridge's substructure and provide the necessary support for the rockers. The saddle plates are designed to match the curvature of the rockers, allowing smooth rocking motions. They are usually made of steel or other durable materials to withstand the forces transmitted through the rockers.

‍

Supporting Structures

‍

Bottom and Top Plates:

‍
Both roller and rocker bearings feature bottom and top plates. The bottom plate is anchored to the bridge's substructure, while the top plate is connected to the superstructure. These plates are critical for transferring loads between the bridge deck and the supporting piers or abutments. They also provide a stable surface for the rollers or rockers to operate on.

‍

Shear Dowels:

‍
Shear dowels are used to prevent horizontal movement between the bearing and the supporting structure. They are typically steel rods or bolts that connect the bearing plates to the substructure, providing additional stability and ensuring that the bearing remains securely in place. Shear dowels are particularly important in regions with high seismic activity or where the bridge is subject to significant lateral forces.

‍

Conclusion

‍

The key components of roller and rocker bearings are crucial for their proper function and effectiveness in accommodating movements and loads in bridge structures. Rollers, plates, and guides are integral to roller bearings, facilitating linear motion with minimal friction. Rockers, knuckles, and saddle plates define the characteristics of rocker bearings, allowing for both rotational and translational movements. Supporting structures, including bottom and top plates and shear dowels, provide essential stability and load transfer. Understanding these components is vital for engineers and maintenance professionals to ensure the safety, durability, and reliability of bridges equipped with these types of bearings. Proper design, installation, and maintenance of these components are essential for the long-term performance of bridge infrastructure.

‍
