Understanding IRC Code 102: The Role of Legislation in Preventing Ribbon Development Along Bypass Roads
When planning bypasses around towns, avoiding uncontrolled development along these new roads—known as ribbon development—is a critical concern. The IRC Code 102-1988, issued by the Indian Roads Congress, provides in-depth guidelines on traffic studies for planning bypasses, emphasizing the vital need for legislative measures to prevent such development.
In this blog, we delve into IRC Code 102, its relevance today, and how legislation can be a powerful tool to preserve the functional integrity of bypass roads.
What is IRC Code 102?
IRC:102-1988, titled “Traffic Studies for Planning Bypasses Around Towns”, is a technical guideline developed to help engineers and planners determine when and where a bypass is needed around an urban area. It outlines the methodologies for conducting origin-destination (O-D) surveys, traffic volume counts, speed and delay studies, and economic analyses to justify the construction of bypasses.
A significant focus of the code is to ensure that bypasses, once constructed, continue to serve their primary purpose: diverting through traffic away from congested urban areas.

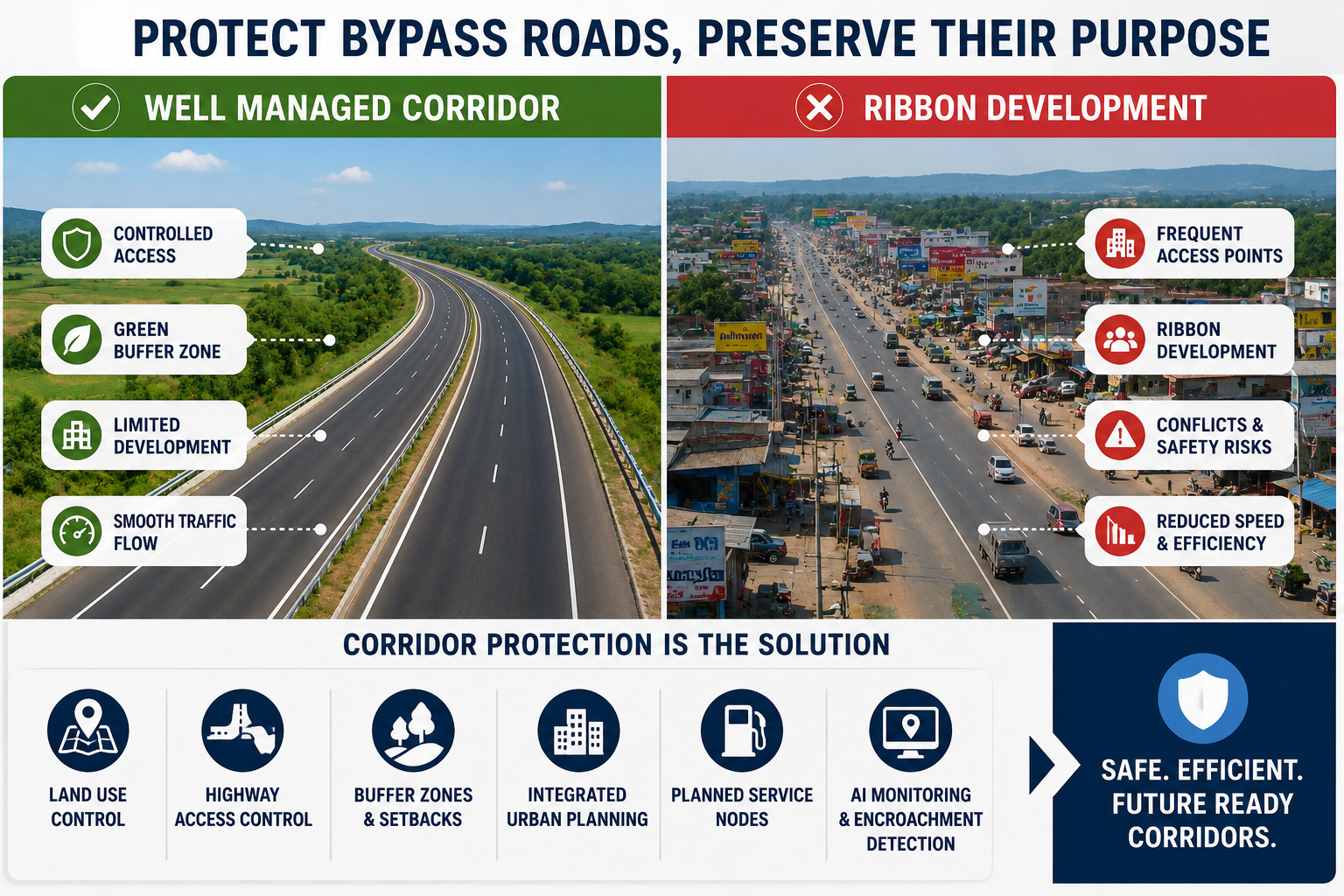

The Problem: Ribbon Development Along Bypass Roads
One of the most persistent challenges associated with bypass roads is ribbon development—the linear spread of commercial or residential activity along the new road. Over time, such development:
- Converts bypasses into congested urban streets.
- Reintroduces traffic conflicts and delays.
- Increases accident risks.
- Negates the very purpose of bypass construction.
Example from IRC 102:
“A bypass, after being constructed, soon becomes engulfed with local activities resulting in a total loss of its desired functional character… Tendencies of ribbon development must also be totally curbed through proper legislation on land control and effective implementation.” – IRC:102-1988, Section 1.5
Why Legislation is Essential
According to IRC Code 102, legislation is a preemptive tool. Its objective is to regulate and restrict land-use changes that could lead to ribbon development. Without strong legal frameworks, even the most well-planned bypasses can become ineffective within a few years.
Legislative Measures Include:
- Zoning Laws:
- Restrict commercial or residential construction within a specified corridor around the bypass.
- Designate the land for agricultural or green use only.
- Controlled Access Policies:
- Limit the number of entry/exit points to the bypass.
- Discourage the proliferation of local roads directly connecting to the bypass.
- Bypass Buffer Zones:
- Mandate buffer zones (typically 100–500 meters) where no permanent structures are allowed.
- These zones help maintain road safety and speed.
- Integrated Urban Planning:
- Align bypass alignment with the town’s master plan.
- Ensure any development happens in a planned, phased, and regulated manner.
- Provision of Essential Facilities Along the Bypass:
- Fuel stations, rest areas, and minor repair shops can be pre-planned and permitted only at specific nodes.
- This curbs unplanned commercial activities.
Aligning Bypass Planning with Town Master Plans
IRC Code 102 underscores the importance of synchronizing bypass alignment with the existing and future land use plans of the town. It’s not just about diverting traffic but integrating the bypass seamlessly with long-term urban development goals.
“Planning the bypass alignment in relation to the master plan of the town in such a manner that the bypass remains unaffected by local urban activities till the end of the design year…” – IRC:102-1988, Section 1.5
Case Study Insight: Impact of Poor Legislation
Though IRC 102 provides a hypothetical case study, real-world examples across India show how bypasses without land-use regulations quickly attract shops, hotels, warehouses, and unauthorized constructions—leading to:
- Congestion and delays.
- Pollution and encroachment.
- Need for constructing additional bypasses—an expensive loop.
Recommended Practices from IRC Code 102
1. Early Land Acquisition
- Acquire land well beyond the bypass alignment to establish future control.
2. Traffic and O-D Surveys
- Conduct comprehensive surveys to assess the bypassable traffic (external-to-external flow).
- Analyze the economic impact of delays caused by mixed traffic within towns.
3. Economic Justification
- Use cost-benefit analysis to show long-term savings from reduced fuel consumption and travel time.
4. Long-Term Projections
- Project traffic volumes for up to 20 years to justify bypass widths and access control.
5. Desire Line Diagrams
- Visualize bypassable traffic patterns and control points for legislative zoning.
The Role of Local Bodies and Enforcement
Strong policy is ineffective without enforcement. IRC 102 calls for:
- Local municipal bodies to take ownership of enforcement.
- Coordination between town planning departments, PWD, and local governance.
- Clear signage and physical barriers to restrict unauthorized access points.
Conclusion: IRC Code 102 and Future-Proof Bypass Planning
IRC Code 102 is more than a guideline—it's a strategic roadmap for sustainable bypass planning. By embedding land control legislation into infrastructure policy, India can safeguard the utility of its bypass roads and prevent the socio-economic costs of ribbon development.
By understanding the technical, economic, and legislative aspects provided in IRC 102, urban planners and engineers can ensure that bypasses remain efficient conduits for decades—serving not just vehicles but the long-term vision of well-planned towns.
