SHC 301 – Highway Geometric Design in Saudi Arabia: A Comprehensive Guide

‍

Saudi Arabia’s extensive highway network plays a crucial role in its economic and infrastructural development. The SHC 301 – Highway Geometric Design manual provides essential technical specifications for the design, reconstruction, and rehabilitation of highways within the Kingdom. This guide ensures that roads meet safety, operational efficiency, and sustainability standards.

‍

This article explores the key elements of SHC 301, including functional classifications, design parameters, and best practices for geometric design in Saudi Arabia.

‍

‍

Scope of SHC 301

‍

The SHC 301 manual is the primary reference for geometric design aspects in Saudi Arabia. It applies to:

• New highway construction
• Reconstruction and rehabilitation projects
• Intersections and interchanges

‍

It aligns with the Saudi Vision 2030 objectives, emphasizing public mobility, economic growth, and safety in highway infrastructure. The manual integrates international best practices with localized requirements considering the region’s unique topography and environmental challenges.

‍

Functional Classification of Highways in Saudi Arabia

‍

Saudi Arabia categorizes its highways into five functional classes based on their purpose and traffic volume:

1. Freeways – High-speed roads with controlled access, connecting major cities.
2. Principal Arterials – High-capacity roads facilitating long-distance travel.
3. Minor Arterials – Medium-capacity roads connecting local roads to arterials.
4. Collectors – Roads designed to gather and distribute traffic from local roads.
5. Local Roads – Low-volume roads providing direct access to properties.

This classification ensures efficient traffic management, maintenance prioritization, and long-term planning.

‍

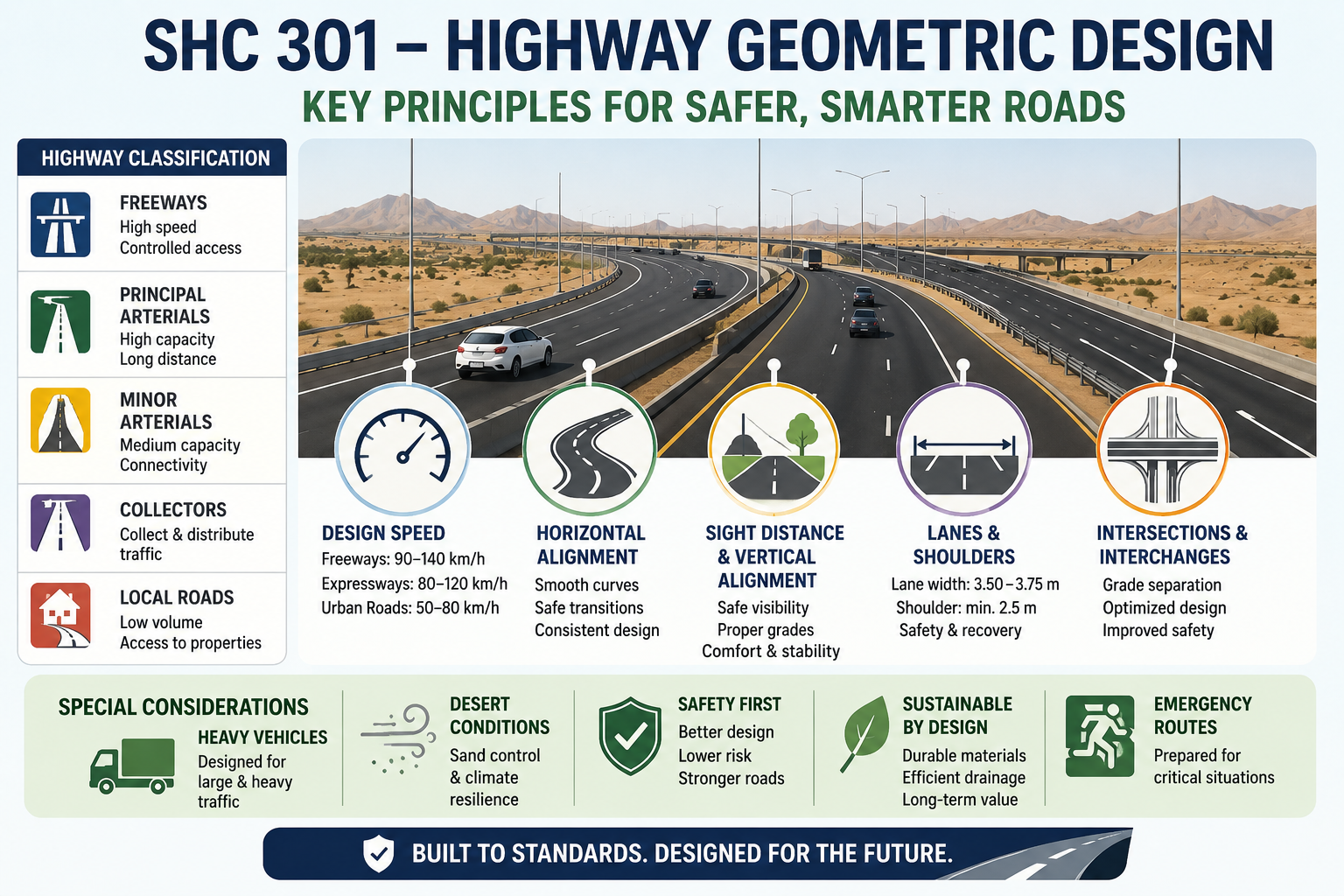

Key Design Elements in SHC 301

‍

The SHC 301 document outlines crucial design aspects for ensuring safe and efficient roadways:

1. Design Speed and Horizontal Alignment

• Freeways: 90–140 km/h
• Expressways: 80–120 km/h
• Urban roads: 50–80 km/h
• The horizontal alignment should be optimized for safety, minimizing sharp curves and abrupt transitions.

2. Vertical Alignment and Sight Distance

• Ensures safe sight distances based on speed and terrain.
• Grades should be minimized to enhance vehicle stability and fuel efficiency.
• Vertical clearances must be at least 5.50 meters on highways.

3. Lane and Shoulder Widths

• Freeways: 3.75 meters per lane
• Rural highways: 3.50 meters per lane
• Shoulders: 2.5 meters minimum for safety zones and vehicle breakdowns.

4. Intersections and Interchanges

• Grade-separated interchanges are preferred for major highways.
• Roundabouts and signalized intersections are used in urban areas.
• Sight distance and turning radii are optimized for different vehicle types.

5. Special Design Considerations

• Heavy Vehicle Design: Roads in industrial areas must accommodate large trucks.
• Sand Control Measures: Highways in desert areas require designs that mitigate sand accumulation.
• Emergency Evacuation Routes: Special considerations for critical infrastructure and national security.

‍

Sustainability and Safety Considerations

‍

Saudi Arabia’s highway design incorporates sustainable and safe engineering principles:

• Use of durable materials to withstand extreme temperatures.
• Drainage design to prevent water accumulation and erosion.
• Smart road technologies such as AI-powered traffic monitoring.

‍

Conclusion

‍

SHC 301 is a comprehensive guide ensuring that Saudi Arabia’s highways meet the highest safety, efficiency, and sustainability standards. By adhering to these design principles, the Kingdom continues to enhance its transportation network, supporting economic growth and connectivity.

‍
